Certified solution for VdS-compliant area monitoring of sensitive areas using the Cx-1 capacitive field change detector

For planners of security systems, reliable, certified and discreetly integrable wall monitoring is at the top of the list – especially in security-relevant properties such as data centres, server rooms, government buildings, museums or industrial facilities.

With the Cx-1 capacitive field change detector, we offer invisible breakhrough protection that meets the highest security requirements in accordance with VdS Class C and at the same time fits seamlessly into existing building structures.

Reliable wall monitoring – modular, scalable and architecturally discreet

Flexible fleece construction for inconspicuous integration into demanding construction projects

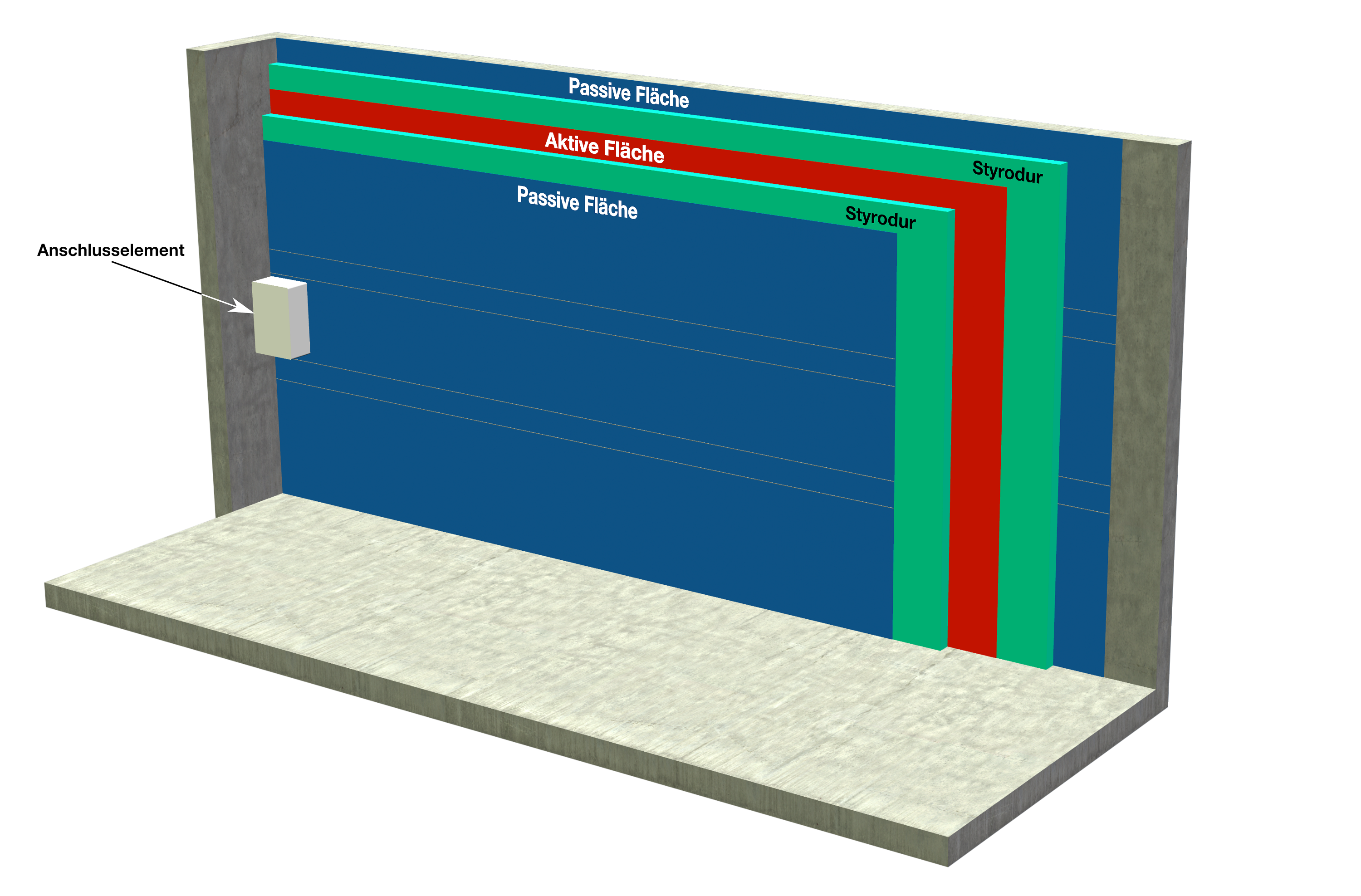

The sensor system is based on a multi-layer fleece construction with Styrodur insulation layers. It is installed directly on the inside of the wall to be secured, and the sensor surface can be painted over after installation – ideal for architecturally demanding projects with high design requirements.

Segmentation of large wall areas – up to 50 m² per field with full functionality

Large wall surfaces can be planned in a structured manner: the sensor surface is divided into individual segments of up to 50 m² (depending on the insulation thickness) so as not to exceed the capacitive load limit of the Cx-1. Each segment is constructed and shielded separately – ideal for the scalable protection of large objects.

Technology behind the Cx-1 – detecting and evaluating capacitive field changes

Reliable detection of breaches and intrusions

The Cx-1 field change detector continuously monitors the capacitive field generated within the wall structure. Any physical change – whether a breach, intrusion or intrusion – is precisely detected and an immediate alarm is triggered.

Integration via coaxial cable & USB configuration – easy to plan and test

The connection to the sensor surface is made via coaxial cable (RG71) with a length of up to 10 m. Smaller areas can be connected directly via a second socket. Commissioning and configuration are carried out via the Tiny NEMA USB communication adapter, including PC-based software and load calculation tool – perfect for preliminary planning and documentation.

Advantages for planners and architects – certified, scalable, insurance-compliant

Shape adaptation, paintable surface, modular structure

The system adapts individually to structural conditions – such as door openings, beams, angled walls or other fixtures. The paintable, flush surface allows for virtually invisible integration into any interior design.

Important prerequisite for VdS approval & insurance documentation

The Cx-1 break-in protection is certified according to VdS Class C, which not only offers technical security but also legal certainty vis-à-vis authorities and insurers – a clear advantage in the planning and implementation of security systems.

Conclusion: Capacitive breakthrough protection – state-of-the-art technology for maximum building security

Capacitive breakthrough protection with Cx-1 combines state-of-the-art sensor technology with the highest security standards – ideal for buildings where discretion, protection and accountability are crucial.

Whether banks, museums, archives, data centres, ammunition depots or highly sensitive industrial facilities – with the Cx-1, your property is protected against structural attacks at an early stage.
